Add, Combine, Remove Dimensions from a String

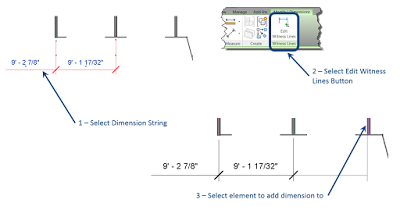

• The Edit Witness Lines tool allows users to add additional dimension(s) to end of dimension a string.
  1. Select the dimension string
  2. Select the Edit Witness Lines button from the ribbon
  3. Select an element to add a dimension to
  4. Pick in space to end command

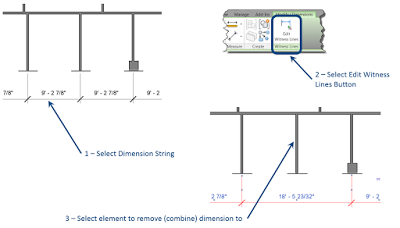

• The Edit Witness Lines tool allows users to remove (combined) dimension(s) in a dimension string.
  1. Select the dimension string
  2. Select the Edit Witness Lines button from the ribbon
  3. Select on the element that you wish to remove the extension line from
  4. Pick in space to end command

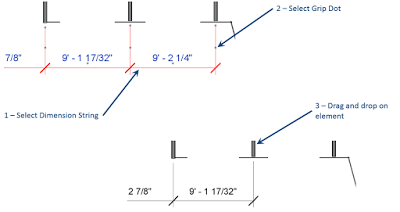

• Selecting the middle Grip Dot on a dimension string extension line allows users to remove a dimension at the end of a dimension string.
  1. Select on the dimension string
  2. Select on the middle Grip Dot on the extension line (and Hold pick button down)
  3. Move extension line to element that second extension is on and let go of pick button (it’s a simply drag and drop)

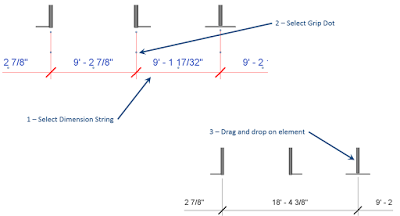

• Selecting the middle Grip Dot on a dimension string extension line allows users to combine dimensions in the middle of a dimension string.
  1. Select on the dimension string
  2. Select on the middle Grip Dot
  3. Drag dot to the element extension you line to combine

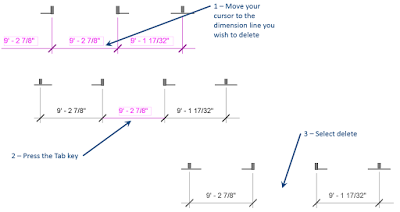

• The Tab key allows you to pre-select a dimension that you then can select to delete.
  1. Move your curser (mouse) to the dimension line you wish to delete from the string
  2. Press the tab key to pre-select the dimension
  3. Select the dimension and delete
